MpPackMLModule

mapp Services V5.16

MpPackMLModule can be used to control a module of the machine.

This function block can only be used in synchronized mode.

Function block

Optional parameters

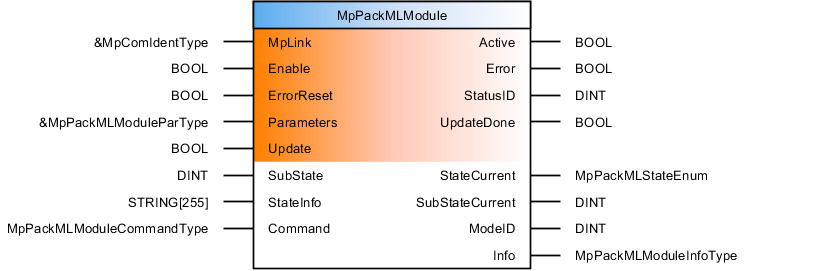

mppackmlmodule

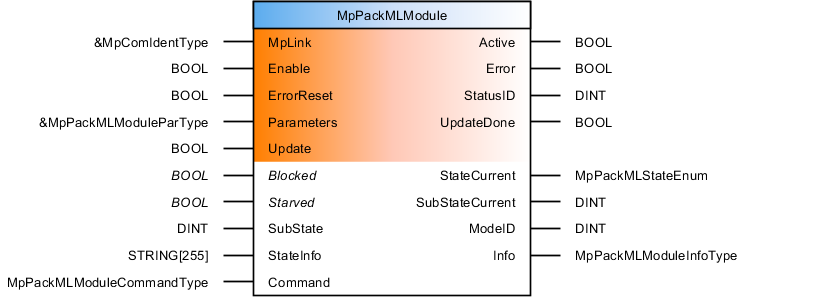

mppackmlmodule_opt

Interface

I/O	Parameter	Data type	Description
IN	MpLink	Pointer to MpComIdentType	Connection to mapp configuration (MpLink of an MpPackMLModule configuration )
IN	Enable	BOOL	The function block is active as long as this input is set.
IN	ErrorReset	BOOL	Resets function block errors.
IN	Parameters	Pointer to MpPackMLModuleParType	Parameters of the function block.
IN	Update	BOOL	Updates the parameters.
IN	Blocked	BOOL	Specifies that the module is blocked. The previous module cannot send any other products to the module.
IN	Starved	BOOL	Specifies that the module is waiting for further products. The previous module is not sending any new products.
IN	SubState	DINT	Specifies the sub-state.
IN	StateInfo	STRING[255]	Specification of the state information.
IN	Command	MpPackMLModuleCommandType	Specification of the command.
OUT	Active	BOOL	Function block active.
OUT	Error	BOOL	Error occurred during execution.
OUT	StatusID	DINT	Status information.
OUT	UpdateDone	BOOL	Parameter update completed.
OUT	StateCurrent	MpPackMLStateEnum	Specifies the module's current state.
OUT	SubStateCurrent	DINT	Specifies the current sub-state of the module.
OUT	ModeID	DINT	Specifies the current mode ID.
OUT	Info	MpPackMLModuleInfoType	Additional function block information.
