mapp Services V5.16

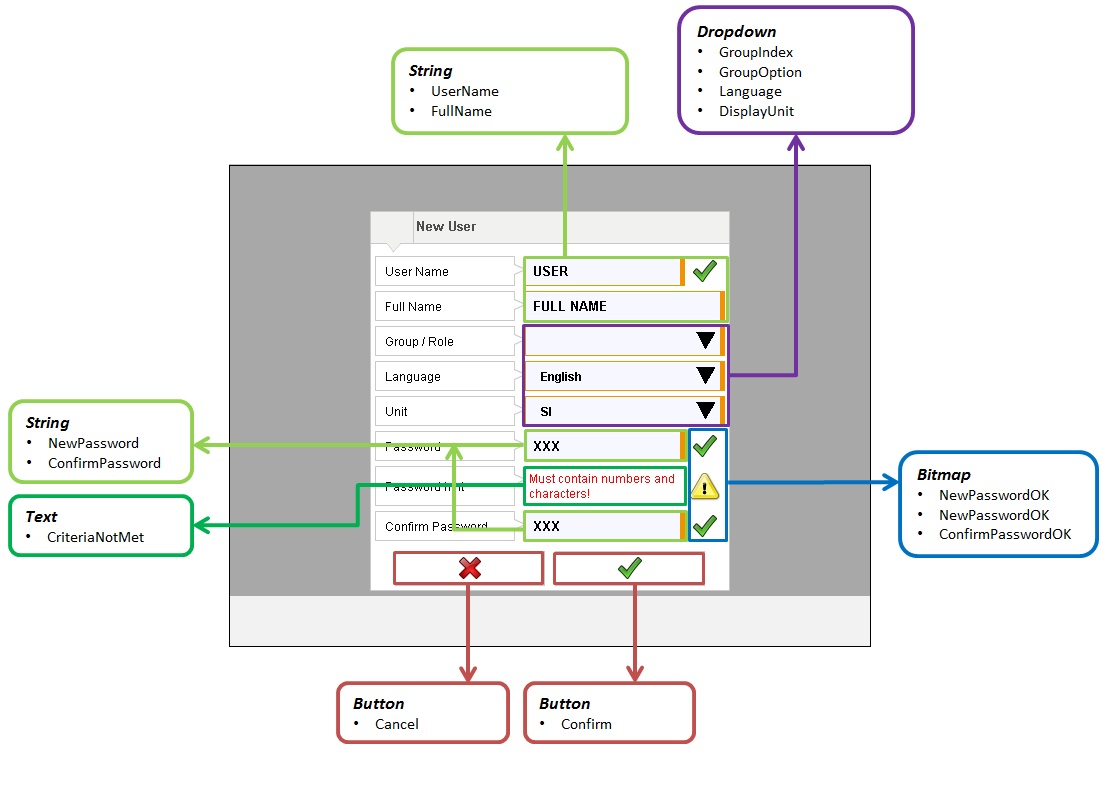

Data type used to control the display of a dialog box. This dialog box is used to create and edit a new user.
Only a user with administrator rights can create users that also have administrator rights.
Data type |
Description |
|
UserName |
WSTRING[20] |
Name of the user. If a user is edited, the name cannot be changed. If a new user is created, the username can be specified here. VC4 connection: Datapoint from String |
UserNameOk |
UINT |
The username corresponds to the criteria for a username. |
FullName |
WSTRING[100] |
Full name of the new user VC4 connection: Datapoint from String |
GroupIndex |
UINT |
User group to which the user should be assigned. Connected via drop-down list that displays a text group with the user groups. VC4 connection: IndexDatapoint from Dropdown (text group for user groups) |
GroupOption |
ARRAY[0..9] of UINT |
Sorts and removes user groups in the drop-down list that cannot be selected VC4 connection: OptionDatapoint from Dropdown (text group for user groups) |
NewPassword |
WSTRING[20] |
New password VC4 connection: Datapoint from String |
NewPasswordOk |
UINT |
The new password corresponds to the criteria for a password. |
CriteriaNotMet |
If the password entered does not correspond to the criteria for a new password, this parameter will indicate the error. If several criteria are not met, then only one will be indicated by this parameter. |
|
ConfirmPassword |
WSTRING[20] |
Password confirmation VC4 connection: Datapoint from String |
ConfirmPasswordOk |
UINT |
Password for confirming the correct input |
Language |
UINT |
Preferred language of the new user VC4 connection: IndexDatapoint from Dropdown (text group for languages) |
DisplayUnit |
UINT |
Preferred unit of the new user VC4 connection: IndexDatapoint from Dropdown (text group for units) |
LayerStatus |
UINT |
Visibility of the dialog box (status data point for the dialog box layer) VC4 connection: StatusDatapoint from Layer |
Confirm |
BOOL |
Confirms the operation VC4 connection: Datapoint from Button / Type: SetDatapoint / SetValue: 1 |
Cancel |
BOOL |
Cancels the operation VC4 connection: Datapoint from Button / Type: SetDatapoint / SetValue: 1 |
AdditionalData |
ARRAY[0..9] of MpUserMgrUIAdditionalDataType |
Additional user information |
