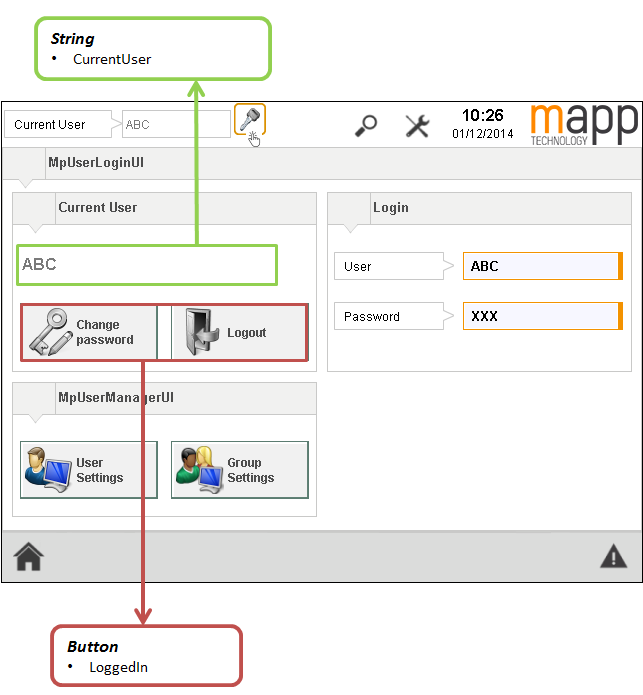

This data type can be used to create a connection between the MpUserLoginUI component and the Visual Components 4 HMI application. This structure can be used for logging in and out.
Data type |
Description |
|
Status |
Current operation |
|
CurrentUser |
WSTRING[20] |
Currently logged in user VC4 connection: Datapoint from String |
Language |
UINT |
Preferred language of the current (or previous) active user VC4 connection: IndexDatapoint from Text (text group for languages) |
DisplayUnit |
UINT |
Preferred unit of the current (or previous) active user VC4 connection: IndexDatapoint from Text (text group for units) |
LoggedIn |
BOOL |
User is logged in VC4 connection: LockingDatapoint from Button / Locking: Datapoint < Level / Level: 1 |
Login |
Basic login information |
|
ChangePassword |
Used to change the password |
|
Message box |
Controls dialog boxes |
|
DefaultLayerStatus |
UINT |
Status data point for the default layer of the visualization page where logging in and out takes place VC4 connection: StatusDatapoint from Layer |
UserLevel |
DINT |
Level of the currently logged in user |
