MpPackMLMode

mapp Services V5.16

This function block manages a PackML mode.

logo_online_tutorial

Our B&R Tutorial Portal includes tutorials about mapp PackML (GER/ENG). (access data)

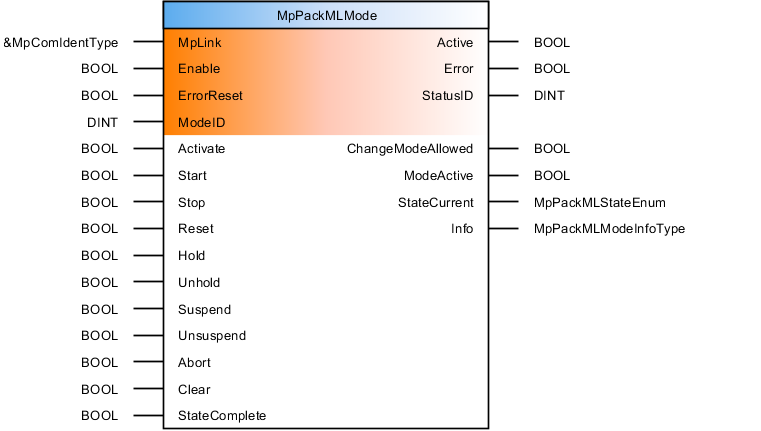

Function block

mppackmlmode

Interface

I/O	Parameter	Data type	Description
IN	MpLink	Pointer to MpComIdentType	Connection to mapp. For more information, see Description.
IN	Enable	BOOL	The function block is active as long as this input is set.
IN	ErrorReset	BOOL	Resets function block errors.
IN	ModeID	DINT	Unique identification number for each mode.
IN	Activate	BOOL	Enables this mode, if allowed.
IN	Start	BOOL	PackML START command.
IN	Stop	BOOL	PackML STOP command.
IN	Reset	BOOL	PackML RESET command.
IN	Hold	BOOL	PackML HOLD command.
IN	Unhold	BOOL	PackML UNHOLD command.
IN	Suspend	BOOL	PackML SUSPEND command.
IN	Unsuspend	BOOL	PackML UNSUSPEND command.
IN	Abort	BOOL	PackML ABORT command.
IN	Clear	BOOL	PackML CLEAR command.
IN	StateComplete	BOOL	PackML STATE COMPLETE command.
OUT	Active	BOOL	Function block active.
OUT	Error	BOOL	Error occurred during execution.
OUT	StatusID	DINT	Status information.
OUT	ChangeModeAllowed	BOOL	Indicates whether changing the mode is allowed.
OUT	ModeActive	BOOL	Indicates whether this mode is active.
OUT	StateCurrent	MpPackMLStateEnum	Current state.
OUT	Info	MpPackMLModeInfoType	Additional function block information.

mapp concept

Section mapp components explains how mapp components are structured. In addition, it provides important notes for correctly using mapp components (e.g. for downloads).

Topics in this section:

•Description
