MpCodeBoxManager

mapp Services V5.16

MpCodeBoxManager can be used to delete, export and import programs/macros.

Function block

Optional parameters

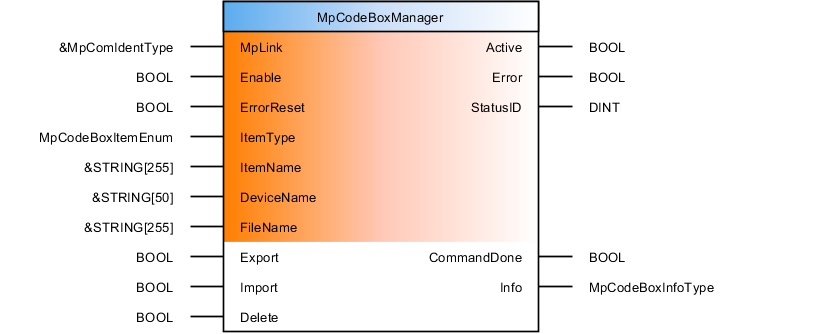

mpcodeboxmanager

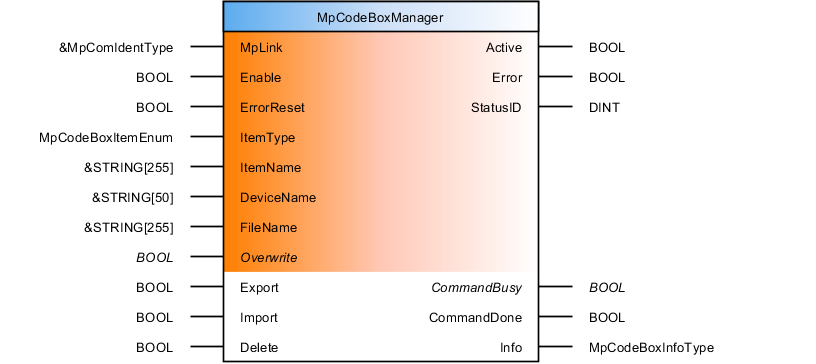

mpcodeboxmanager_opt

Interface

I/O	Parameter	Data type	Description
IN	MpLink	Pointer to MpComIdentType	Connection to mapp configuration (MpLink of an MpCodeBoxCore configuration).
IN	Enable	BOOL	The function block is active as long as this input is set.
IN	ErrorReset	BOOL	Resets function block errors.
IN	ItemType	MpCodeBoxItemEnum	Defines whether it is a macro or program
IN	ItemName	Pointer to STRING[255]	Name of the program or macro.
IN	DeviceName	Pointer to STRING[50]	File device (data storage medium) where the files are stored.
IN	FileName	Pointer to STRING[255]	Name of the file that contains the program. The file can also be stored in a folder on the specified data storage device. In this case, the folder name must also be specified (e.g. "FolderName/Filename").
IN	Overwrite	BOOL	Defines whether imported or exported programs with the same name are overwritten.
IN	Export	BOOL	Command to start an export.
IN	Import	BOOL	Command to start an import.
IN	Delete	BOOL	Command to delete a specified program.
OUT	Active	BOOL	Function block active.
OUT	Error	BOOL	Error occurred during execution.
OUT	StatusID	DINT	Status information.
OUT	CommandBusy	BOOL	Function block currently executing command.
OUT	CommandDone	BOOL	Execution successful. Function block is finished.
OUT	Info	MpCodeBoxInfoType	Additional function block information.
